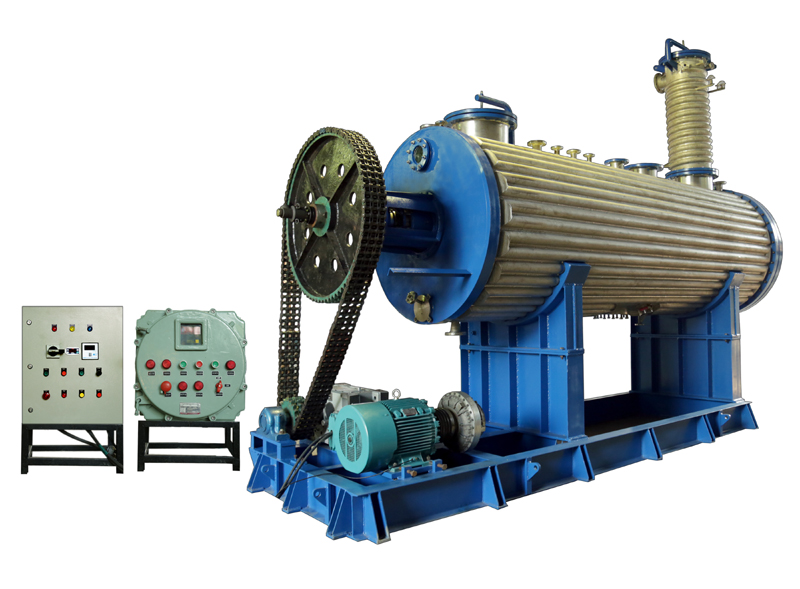

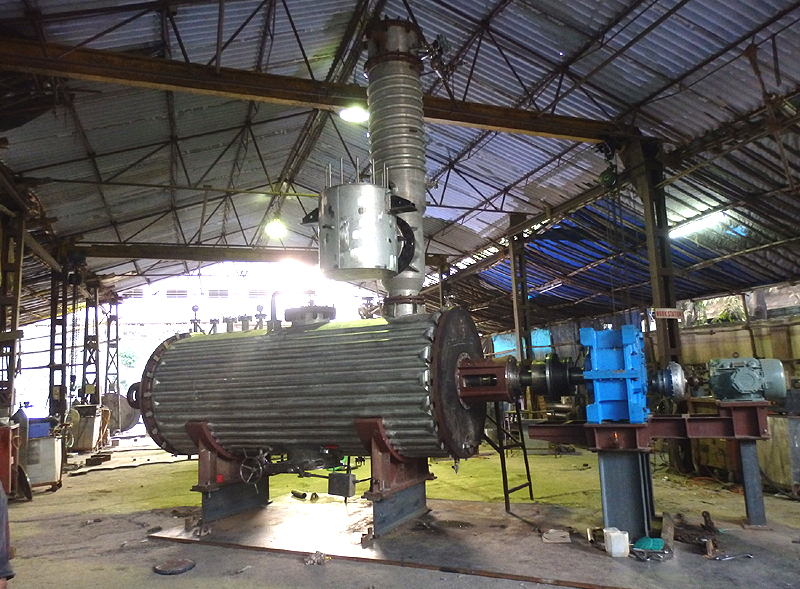

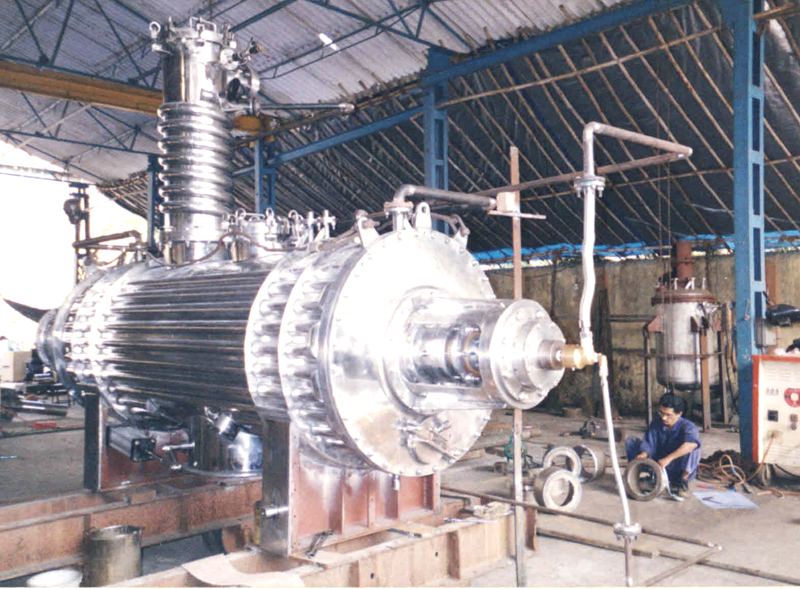

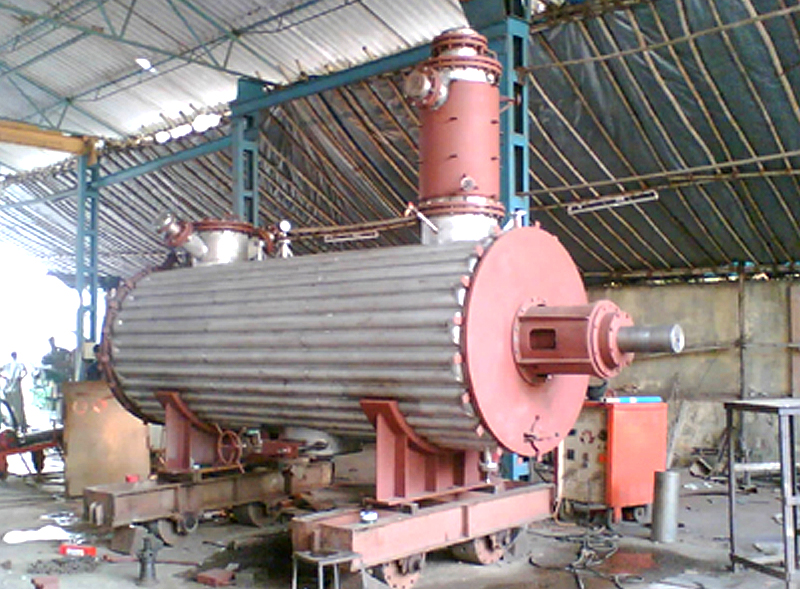

We have manufactured GMP model RVDs to for pharmaceutical intermediary products. We provide a sturdy hollow rotor with a siphoning system to provide heating up till the end of the rotor arms, ensuring uniform drying of the product. The skid-mounted arrangement makes it possible to commission the machine easily at-site. With a robust and infallible design, our vacuum paddle dryers have been unparalleled in the industry. We have manufactured RVDs ranging from 50 litres to 12 kilolitres, all functioning at optimum efficiency. Our Designs are easy to maintain, and can be provided with a direct drive, or motor-gearbox arrangement.

Evaporative Systems, Rotary Vacuum Dryers, Heaters of different capacity & sizes are manufactured.

Product Details :
Weight 500 kg to 20 Tonnes
Application Pharmaceutical formulations, intermediary compounds and fine chemicals, insecticides, dyes and paints.
Material Stainless Steels and Alloys.
Capacity 50 Litres to 20,000 litres.
Features :
  • High thermal Efficiency
  • Pneumatic, hydraulic and Manual discharge valve.
  • Precise temperature control for drying heat sensitive materials.
  • Unique quick opening discharge valve
  • Sturdy Stuffing Box, Mechanical seal design for shaft sealing.
  • Vacuum provides better colour and texture of dried products.
  • Efficient rotary joint to inject heating media into agitator to remove condensate.
  • Granular Pasty material can be handled.
  • Low Temperature operation possible.
  • 100% Solvent recovery.
